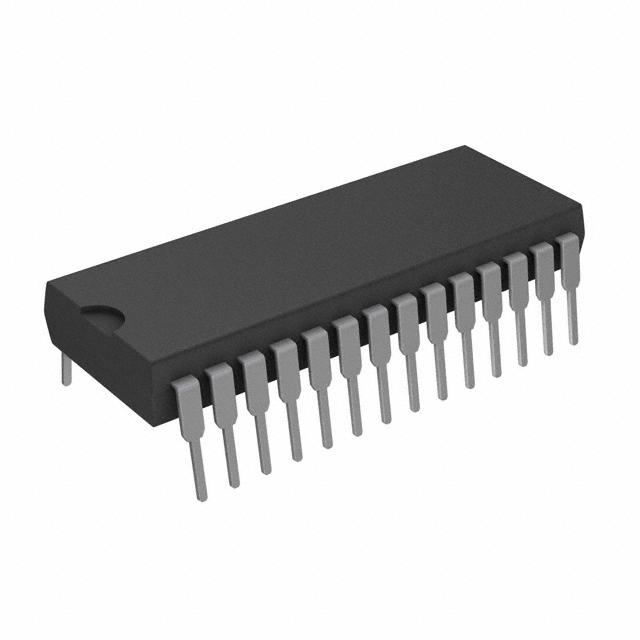

Image is for your reference only,please check specifications for details
- ICM7228CIPIZ - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC54054866
-
Category:LED Driver, LED Display Driver
-
Package:DIP-28
-
Datasheet:Datasheet 3D Model
-
Description:ICM7228 Series 4 - 6V 8-Digit LED Multiplexed Display Decoder Driver - PDIP-28
-
Stock Locations:
-
Availability:542 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.8
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
ICM7228CIPIZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | DIP-28 |
| Number of Outputs | 16 Output |
| Input Voltage (DC) | 4.00V ~ 6.00V |
| Output Current | 200 µA |
| Supply Current | 200 µA |
| Number of Positions | 28 Position |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 4 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4V ~ 6V |
| Show | |
| Size-Length | 39.7 mm |
| Size-Width | 14.73 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
Contact Us
If you have any problem,please email to sales@manychip.com, we will response as soon as possisble.
