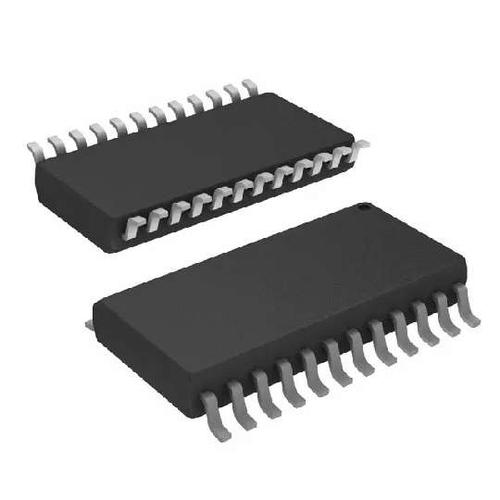

- TLC3578IDW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC56831366
-
Category:Analog to Digital, ADC IC
-
Package:SOIC-24
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TLC3578IDW Analog to Digital Converter, 14Bit, 200KSPS, Single, 4.75V, 5.5V, SOIC
-
Stock Locations:
-
Availability:1,214 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLC3574, TLC3578, TLC2574, and TLC2578 are a family of high-performance, low-power, CMOS analog-to-digital converters (ADC). TLC3574/78 is a 14-bit ADC; TLC2574/78 is a 12-bit ADC. All parts operate from single 5-V analog power supply and 3-V to 5-V digital supply. The serial interface consists of four digital input [chip select (CS\\\\), frame sync (FS), serial input-output clock (SCLK), serial data input (SDI)], and a 3-state serial data output (SDO). CS\ (works as SS\, slave select), SDI, SDO and SCLK form an SPI interface. FS, SDI, SDO, and SCLK form DSP interface. The frame sync signal (FS) indicates the start of a serial data frame being transferred. When multiple converters connect to one serial port of a DSP, CS\ works as the chip select to allow the host DSP to access the individual converter. CS\ can be tied to ground if only one converter is used. FS must be tied to DVDD if it is not used (such as in an SPI interface). When SDI is tied to DVDD, the device is set in hardware default mode after power on and no software configuration is required. In the simplest case, only three wires (SDO, SCLK, and CS\ or FS) are needed to interface with the host.
- In addition to being a high-speed ADC with versatile control capability, these devices have an on-chip analog multiplexer (MUX) that can select any analog input or one of three self-test voltages. The sample-and-hold function is automatically started after the fourth SCLK (normal sampling) or can be controlled by a special pin, CSTART\, to extend the sampling period (extended sampling). The normal sampling period can also be programmed as short sampling (12 SCLKs) or long sampling (44 SCLKs) to accommodate the faster SCLK operation popular among high-performance signal processors. The TLC3574/78 and TLC2574/78 are designed to operate with low-power consumption. The power saving feature is further enhanced with autopower-down mode and programmable conversion speeds. The conversion clock (internal OSC) is built in. The converter can also use an external SCLK as the conversion clock for maximum flexibility. The TLC3574/78 and TLC2574/78 are specified with bipolar input and a full scale range of ±10 V.
TLC3578IDW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SOIC-24 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 4.20 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 8 Channel |
| Number of Bits | 14 Bit |
| Sample Rate | 200 ksps |
| Power Consumption | 29 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 4, 8 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 8, 4 Channel |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 15.4 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
