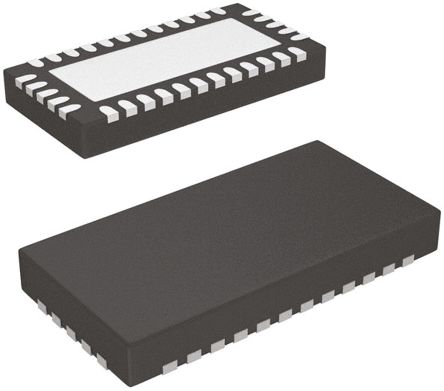

BQ24765RUVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC6343103
Category:
Battery Management IC
Package:
VQFN-34
Datasheet:
Datasheet 3D Model
Description:
Battery Charge Management SMBus Controlled Battery Charger with Integrated FETs Battery Charger 8064mA 1.024V to 19.2V 34Pin VQFN EP T/R
Stock Locations:
Availability:
257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.24

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ24765RUVT is a high-efficiency synchronous Battery Charger with two integrated 30mR NMOS power MOSFETs and an integrated input current comparator, offering low component count for space-constraint, multi-chemistry battery charging applications. Input current, charge current and charge voltage DACs allow for very high regulation accuracies that can be easily programmed by the system power management micro-controller using SMBus. It has switching frequency of 700kHz. It features dynamic power management (DPM) and input power limiting. These features reduce battery charge current when the input power limit is reached to avoid overloading the AC adaptor when supplying the load and the battery charger simultaneously. A high-accuracy current sense amplifier enables accurate measurement of input current from the AC adapter, allowing monitoring the overall system power.
Internal soft-start
Dynamic power management (DPM)
Simplified SMBus control interface
Current sense amplifier for current drawn from input source
>95% Efficiency
±0.5% Charge voltage accuracy
±3% Charge current accuracy
±3% Adapter current accuracy
±2% Input current sense amp accuracy
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
