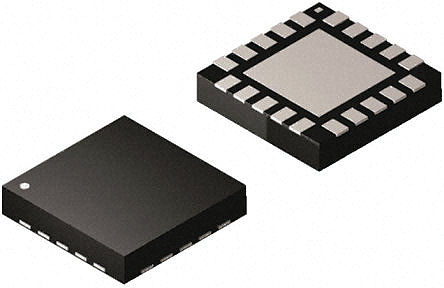

BQ25010RHLR - TI
Manufacturer:
TI
ManyChip's Part#:
MC43580703
Category:
Battery Management IC
Package:
VQFN-20
Datasheet:
Datasheet 3D Model
Description:
Battery Charge Management 500mA Li-Ion Charger w/Integrated 150mA Synchronous Buck Converter, Output Adjustable Battery Charger Li-Ion/Li-Pol Packs 500mA 4.2V 20Pin VQFN EP T/R
Stock Locations:
Availability:
9,584 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.14

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The bq2501x series are highly integrated charge and power management devices targeted at space-limited bluetooth applications. The bq2501x series offer integrated power FET and current sensor for charge control, reverse blocking protection, high accuracy current and voltage regulation, charge status, charge termination, and a highly efficient and low-power dc-dc converter in a small package.
FEATURES
• Li-Ion Or Li-Pol Charge Management and Synchronous DC-DC Power Conversion In a Single Chip
• Optimized for Powering Bluetooth™ Headsets and Accessories
• Charges and Powers the System from Either the AC Adapter or USB with Autonomous Power Source Selection
• Integrated USB Charge Control with Selectable 100 mA and 500 mA Charge Rates
• Integrated Power FET and Current Sensor for Up to 500 mA Charge Applications AND 100mA DC-DC Controller with Integrated FETs
• Reverse Leakage Protection Prevents Battery Drainage
• Automatic Power Save Mode For High Efficiency at Low Current, or Forced PWM for Frequency Sensitive Applications
• 3.5 mm × 4.5 mm QFN Package
APPLICATIONS
• Bluetooth™ Headsets
• Bluetooth™ Accessories
• Low-Power Handheld Devices

Show

BQ25010RHLR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Supply Voltage (DC)	6.50V (max)
Input Voltage (DC)	6.50 V
Output Voltage	4.2 V
Output Current	0.15 A
Switching Frequency	1.00 MHz
Output Voltage (Max)	4.2 V
Output Current (Max)	500 mA
Output Current (Min)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Supply Voltage (Max)	6.5 V
Input Voltage	6.5 V
	Show
Size-Length	4.65 mm
Size-Width	3.65 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
