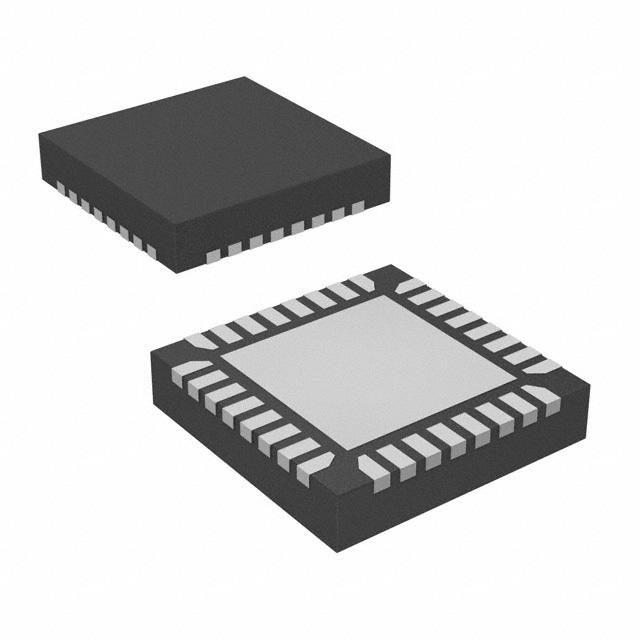

Image is for your reference only,please check specifications for details

BQ40Z50RSMT - TI
Manufacturer:
TI
ManyChip's Part#:
MC1680704
Category:
Battery Management IC
Package:
VQFN-32
Datasheet:
Datasheet 3D Model
Description:
1-4 Series Li-Ion Battery Pack Manager | Battery Fuel (Gas) Gauge 32-VQFN -40℃ to 85℃
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ40Z50RSMT is a Li-ion Battery Fuel (Gas) Gauge incorporating patented Impedance Track™ technology, is a fully integrated, single-chip, pack-based solution that provides a rich array of features for gas gauging, protection and authentication for 1-series, 2-series, 3-series and 4-series cell Li-ion and Li-polymer battery packs. Using its integrated high-performance analog peripherals, the bq40z50 device measures and maintains an accurate record of available capacity, voltage, current, temperature and other critical parameters in Li-ion or Li-polymer batteries and reports this information to the system host controller over an SMBus v1.1 compatible interface. The BQ40Z50 device supports TURBO BOOST mode by providing the available max power and max current to the host system. The device also supports Battery Trip Point to send a BTP interrupt signal to the host system at the pre-set state of charge thresholds.
communication interfaces with host system
SHA-1, HMAC Authentication
Five-LED and higher display through port expander
Reduced power modes
Diagnostic lifetime data monitor and black box recorder
LED display
Supports two-wire SMBus v1.1 interface
Green product and no Sb/Br

Show

BQ40Z50RSMT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	32 Pin
Case/Package	VQFN-32
Supply Voltage (DC)	2.20V (min)
Output Voltage	26 V
Number of Positions	32 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	26 V
Supply Voltage (Min)	2.2 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
