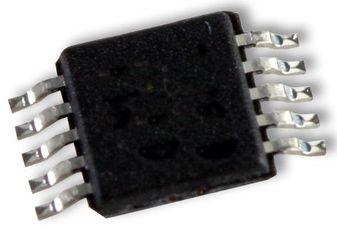

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Cut cost and energy losses in your application by using the power factor correction L6564D power factor improvement by STMicroelectronics. It operates in CRM, Current Mode mode. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power factor controller has a minimum operating temperature of -40 °C and a maximum of 150 °C. This device has a minimum operating supply voltage of 10.3 V and a maximum of 22.5 V. This device has a start-up supply current of 0.09 mA.

Show

L6564D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	SSOP-10
Supply Voltage (DC)	10.3V (min)
Number of Positions	10 Position
Power Dissipation	0.75 W
Thermal Resistance	120 ℃/W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	10.3V ~ 22.5V
Supply Voltage (Max)	22.5 V
Supply Voltage (Min)	10.3 V
	Show
Size-Height	1.25 mm
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
