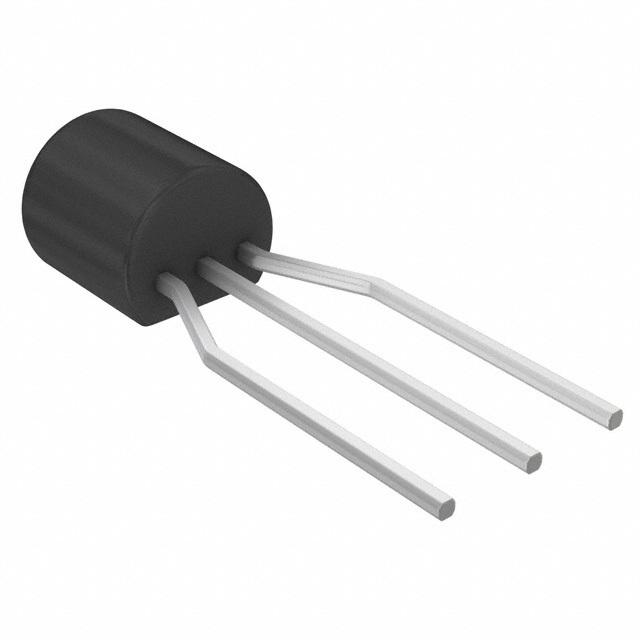

Image is for your reference only,please check specifications for details

BS107ARL1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC85308900
Category:
MOSFET, MOSFET Transistor
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
MOSFET; N-Ch; VDSS 200VDC; RDS(ON) 14Ω; ID 250mA; TO-92 (TO-226); PD 350mW; -55℃
Stock Locations:
Availability:
9,770 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.51

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BS107ARL1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Voltage Rating (DC)	200 V
Current Rating	250 mA
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	4.5 Ω
Polarity	N-Channel
Power Dissipation	350 mW
Threshold Voltage	3 V
Input Capacitance	60pF @25V
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	250 mA
Input Capacitance (Ciss)	60pF @25V(Vds)
Input Power (Max)	350 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350mW (Ta)
	Show
Size-Length	4.45 mm
Size-Height	4.32 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
