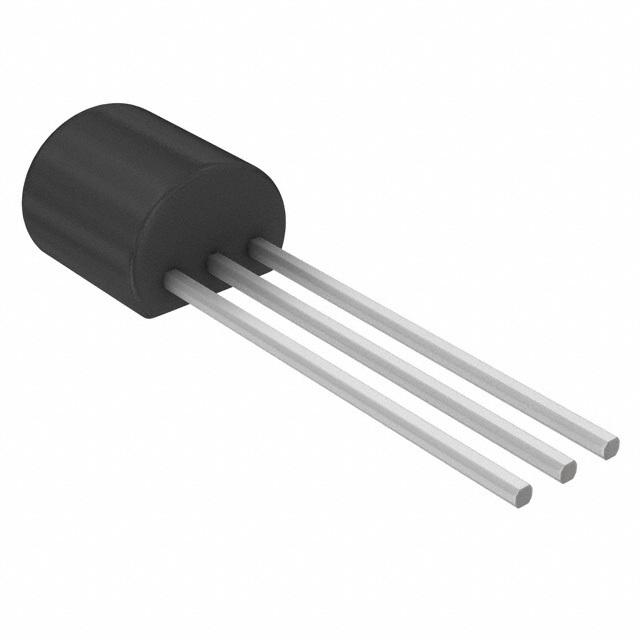

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Thanks to Diodes Zetex, both your amplification and switching needs can be taken care of with one component: the BS170P power MOSFET. Its maximum power dissipation is 625 mW. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This device is made with dmos technology. This N channel MOSFET transistor operates in enhancement mode.

Show

BS170P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Voltage Rating (DC)	60.0 V
Current Rating	270 mA
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	5 Ω
Polarity	N-Channel
Power Dissipation	625 mW
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	270 mA
Input Capacitance (Ciss)	60pF @10V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625mW (Ta)
	Show
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
