Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

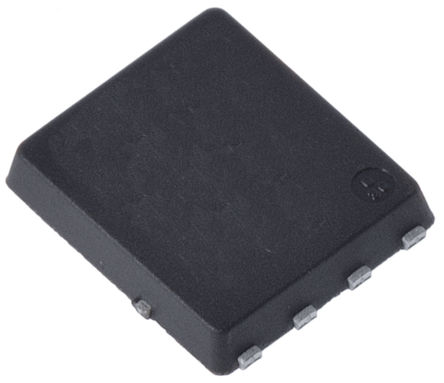

Case/Package | PG-TDSON-8 |
Number of Positions | 8 Position |
Drain to Source Resistance (on) (Rds) | 0.0012 Ω |
Polarity | N-Channel |
Power Dissipation | 156 W |
Threshold Voltage | 2.8 V |
Drain to Source Voltage (Vds) | 60 V |
Continuous Drain Current (Ids) | 30A |
Rise Time | 10 ns |
Input Capacitance (Ciss) | 6500pF @30V(Vds) |
Fall Time | 11 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 2.5W (Ta), 156W (Tc) |
Show | |
Size-Length | 5.9 mm |
Size-Width | 5.15 mm |
Size-Height | 1.27 mm |
Operating Temperature | -55℃ ~ 150℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
