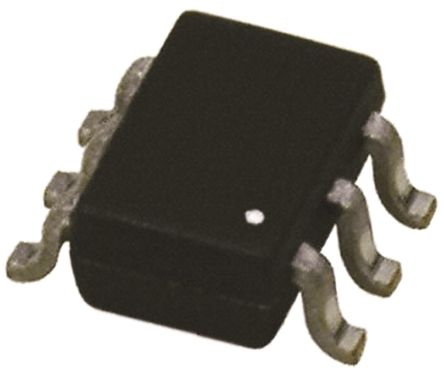

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BSD235C H6327 is a N/P-channel Power MOSFET within the same package are part of Infineon"s famous low voltage OptiMOS™ families, the market leader in high efficiency solutions for power generation (e.g. solar micro inverter), power supply (e.g. server and telecom) and power consumption (e.g. electric vehicle). It is suitable for use with DC to Dc converters and on-board charger applications.
Complementary P + N channel
Enhancement-mode
Avalanche rated

Show

BSD235CH6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-363-6
Power Rating	0.5 W
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.266 Ω
Polarity	N-Channel, P-Channel
Power Dissipation	500 mW
Threshold Voltage	950 mV
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	0.95A/0.53A
Input Capacitance (Ciss)	47pF @10V(Vds)
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
