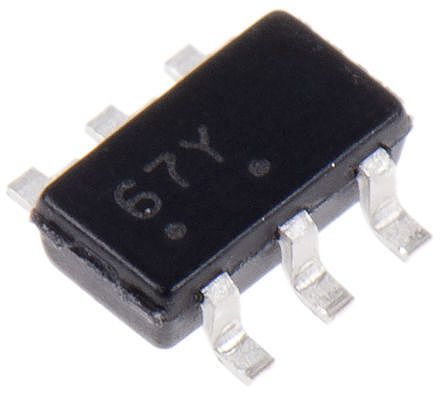

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Complementary p- + n-channel
- Enhancement mode
- Avalanche rated
- Qualified according to AEC Q101
- 100% lead-free; RoHS compliant
BSL316CH6327XTSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | TSOP-6-6 |
| Power Rating | 0.5 W |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 0.119 Ω |
| Polarity | N-Channel, P-Channel |
| Power Dissipation | 500 mW |
| Threshold Voltage | 1.6 V |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 1.4A/1.5A |
| Input Capacitance (Ciss) | 282pF @15V(Vds) |
| Input Power (Max) | 500 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
