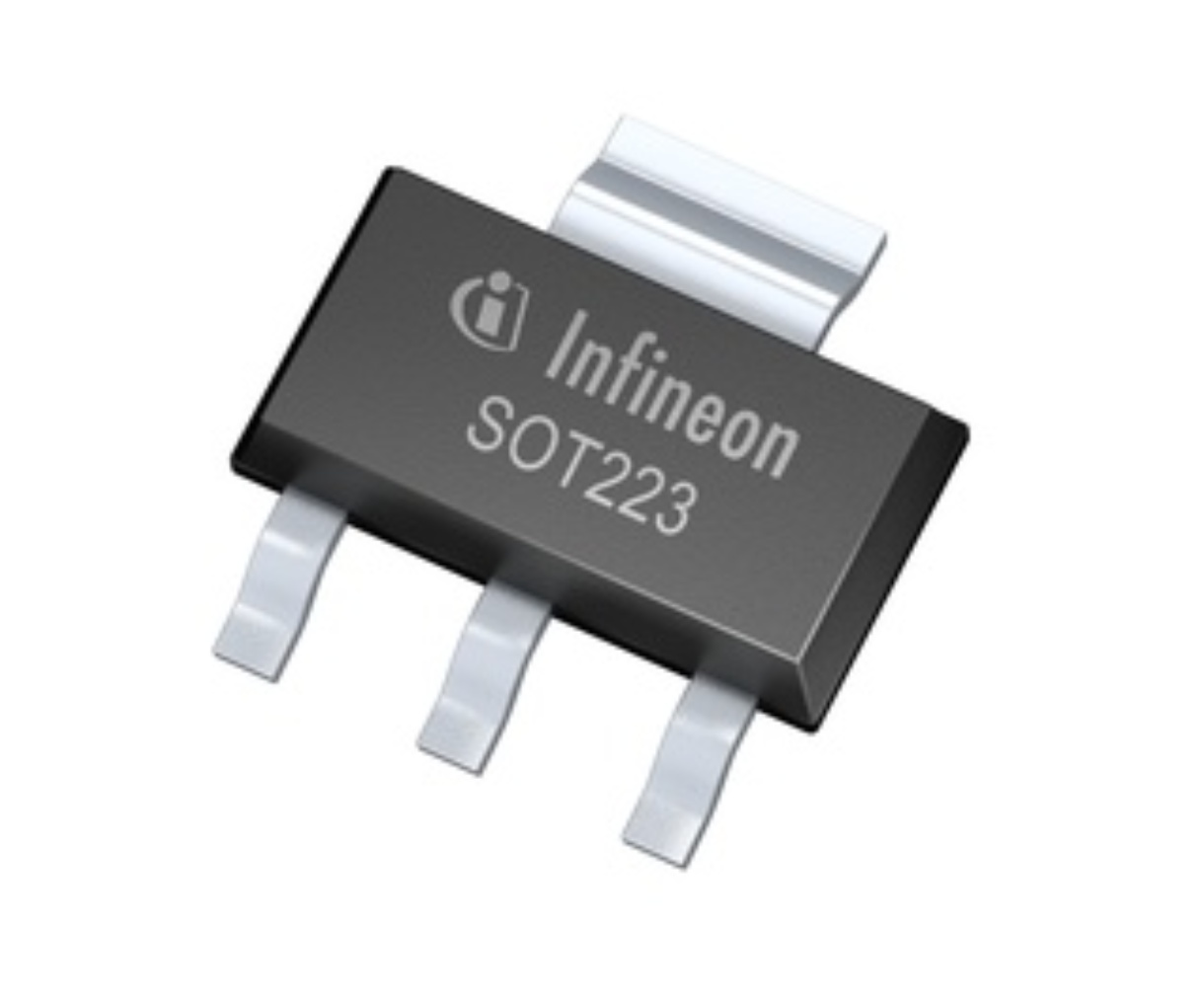

Image is for your reference only,please check specifications for details

BSP452HUMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC565278
Category:
Power Distribution
Package:
SOT-223-4
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 0.7A 0.16Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
301 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.71

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BSP452 is a high side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Short-circuit Protection
Input Protection
Over-temperature Protection with Hysteresis
Overload Protection
Overvoltage Protection
Switching Inductive Load
Clamp of Negative Output Voltage with Inductive Loads
Under-voltage Shutdown
Maximum Current Internally Limited
Electrostatic Discharge (ESD) Protection
Reverse Battery Protection
AEC Qualified
Green Product
Very Low Standby Current
Thermal Shutdown with Restart
Due to technical requirements components may contain dangerous substances, component may only be used in life-support devices or systems with the express written approval of Infineon Technologies.

Show

BSP452HUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Supply Voltage (DC)	5.00V (min)
Number of Outputs	1 Output
Output Current	0.7 A
Supply Current	1 mA
Number of Positions	4 Position
Power Dissipation	1.8 W
Output Current (Max)	700 mA
Output Current (Min)	0.7 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1800 mW
Supply Voltage (Max)	40 V
Supply Voltage (Min)	5 V
Input Voltage	40 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
