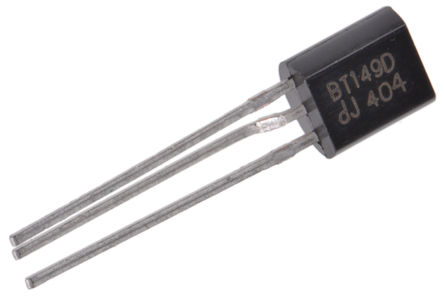

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BT149D is a planar passivated Silicon Controlled Rectifier (SCR) with sensitive gate. It is designed to be interfaced directly to microcontrollers, logic ICs and other low power gate trigger circuits.
Planar passivated for voltage ruggedness and reliability
Direct triggering from low power drivers and logic ICs

Show

BT149D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92
Voltage Rating (DC)	400 V
Current Rating	500 mA
Number of Positions	3 Position
Forward Voltage	1.35 V
Holding Current (Max)	5 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	4.8 mm
Size-Width	4.2 mm
Size-Height	5.2 mm
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
