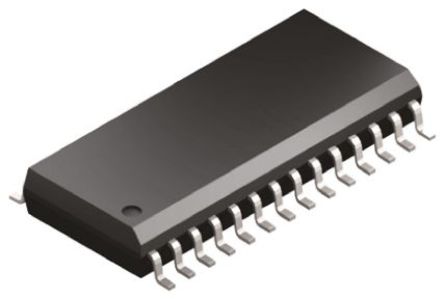

Image is for your reference only,please check specifications for details

BTM7750G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC74234151
Category:
Motor Driver
Package:
PG-DSO-28
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 4 Driver, 22A, PDSO28, GREEN, PLASTIC, 28Pin
Stock Locations:
Availability:
321 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.78

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The BTM7750G is part of the Trilith IC family containing three dies in one package: One double high- side switch and two low- side switches. The drains of these three vertical DMOS chips are mounted on separated lead frames.The sources are connected to individual pins, so the BTM7750G can be used in H- bridge- as well as in any other configuration. Both the double high- side and the two low- side switches of the BTM7750G are manufactured in SMART SIPMOS ® technology which combines low R DS ON vertical DMOS power stages with CMOS circuitry for control, protection and diagnosis.
Summary of Features:
Quad D- MOS switch driver
Free configurable as bridge or quad- switch
Optimized for DC motor management applications
Low R DS ON High side: 70 mΩ typ. @ 25°C,180 mΩ max. @ 150°C Low side: 45 mΩ typ. @ 25°C, 105 mΩ max. @ 150°C
Maximum peak current: typ. 12 A @ 25 °C
Very low quiescent current: typ. 5 µA @ 25 °C
Small outline, enhanced power PG- DSO- package
Operates up to 40 V
PWM frequencies up to 1 kHz
Status flag diagnosis
Short- circuit- protection
Overtemperature shut down with hysteresis
Internal clamp diodes
Under- voltage detection with hysteresis
Green Product (RoHS compliant)
AEC Qualified

Show

BTM7750G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	PG-DSO-28
Supply Voltage (DC)	4.70V (min)
Number of Outputs	1 Output
Output Current	12 mA
Number of Positions	28 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Operating Voltage (Max)	42.0 V
Supply Voltage	1.8V ~ 42V
Supply Voltage (Max)	42 V
Supply Voltage (Min)	4.7 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
