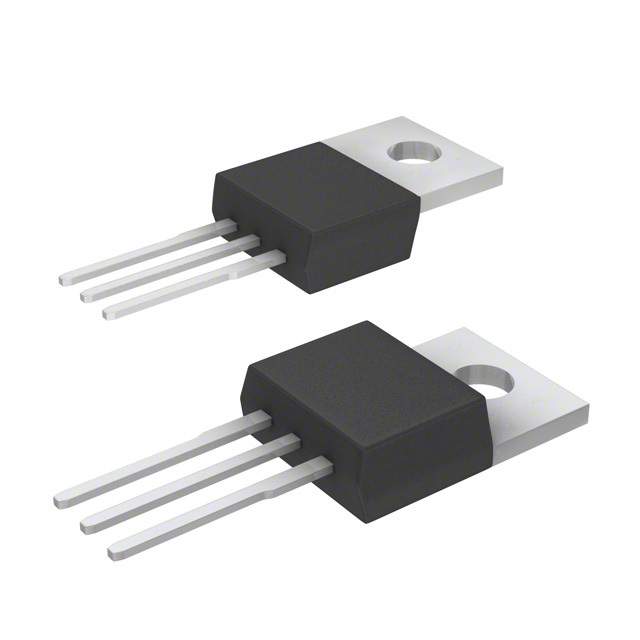

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Logic Level Input
- Input Protection (ESD)
- Thermal shutdown with latch
- Green product (RoHS compliant)
- Short circuit and Overload protection
- Overvoltage protection
- Current limitation
- Status feedback with external input resistor
- Analog driving possible
- AEC qualified
- Green product (RoHS compliant)
BTS133 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 21.0 A |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 60.0 V |
| Output Current | 7 A |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Power Dissipation | 90 W |
| Output Current (Max) | 7 A |
| Output Current (Min) | 7 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 90000 mW |
| Supply Voltage | 2.2V ~ 10V |
| Input Voltage | 60 V |
| Show | |
| Size-Length | 17.5 mm |
| Size-Width | 9.90 mm |
| Size-Thickness | 4.40 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
