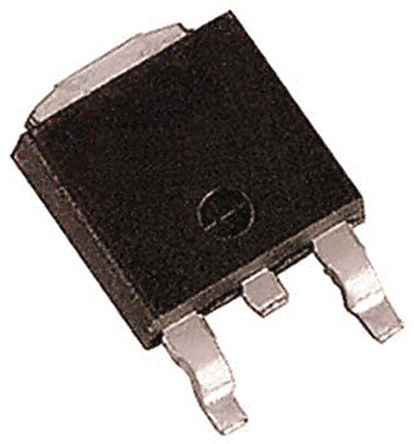

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BTS3134D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Outputs	1 Output
Input Voltage (DC)	42.0 V
Output Voltage	42 V
Output Current	3.5 A
Number of Channels	1 Channel
Number of Positions	3 Position
Power Dissipation	43000 mW
Output Current (Max)	3.5 A
Output Current (Min)	3.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	43000 mW
Supply Voltage	2.2V ~ 10V
Input Voltage	42 V
	Show
Size-Length	6.5 mm
Size-Width	7.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
