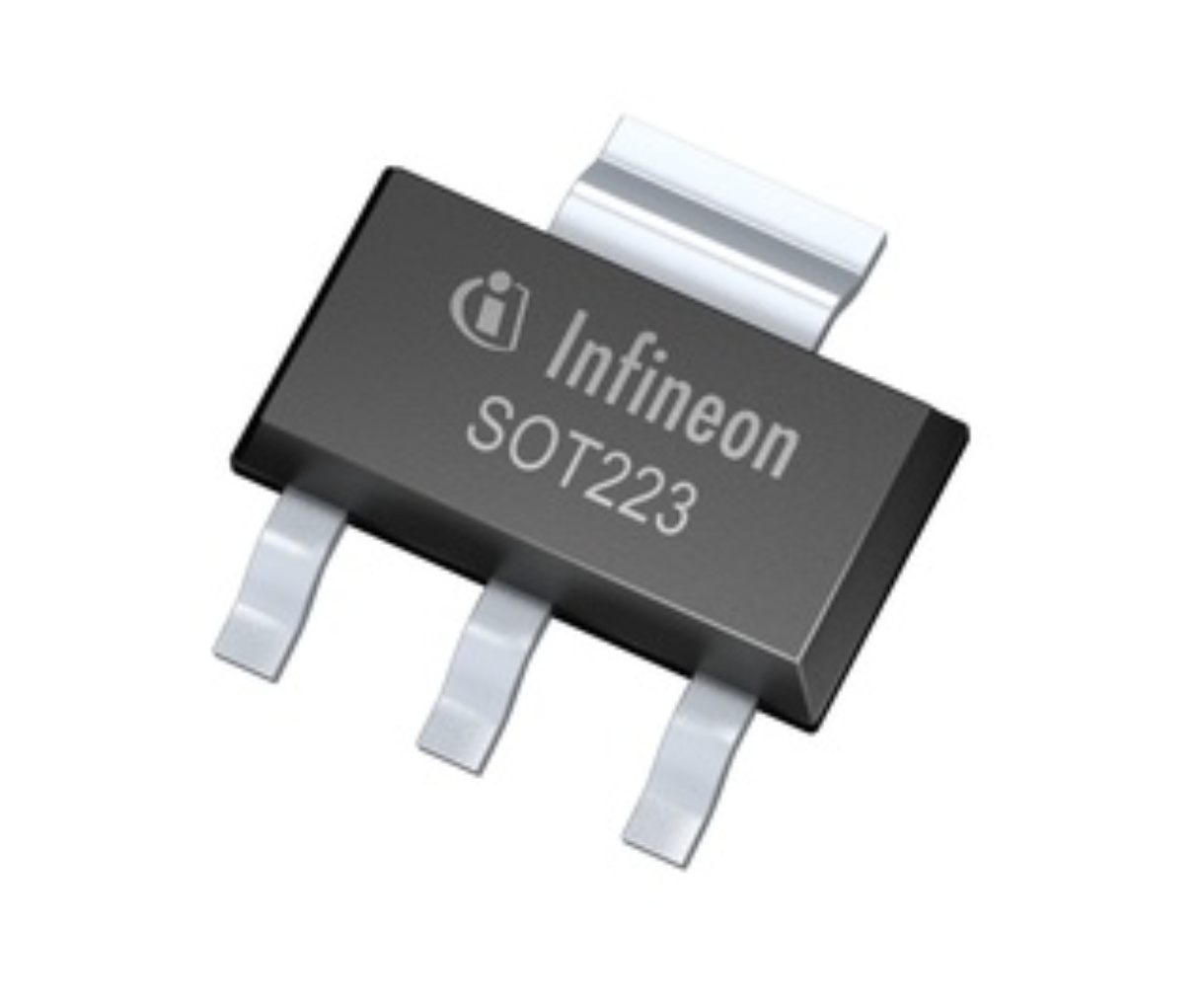

BTS4142NHUMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC7486393
Category:
Power Distribution
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 1.4A 0.15Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
9,857 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 18.19

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS4142N is a high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. N-channel vertical power FET with charge pump, ground reference CMOS compatible input, monolithically integrated in Smart SIPMOS® technology. Providing embedded protective functions.
Overload protection
Thermal shutdown with restart
Overvoltage protection
Under voltage shutdown with auto restart and hysteresis
Switching inductive load
Clamp of negative output voltage with inductive loads
Thermal shutdown with restart
Loss GND and loss Vbb protection
Very low stand by current
Reverse battery protection with external resistor
Improved electromagnetic compatibility(EMC)
ESD sensitive device, take proper precaution while handling the device.

Show

BTS4142NHUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Output Current	1.4 A
Supply Current	1 mA
Number of Positions	4 Position
Power Dissipation	1.4 W
Output Current (Max)	1.4 A
Output Current (Min)	1.4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1400 mW
Supply Voltage	12V ~ 45V
Supply Voltage (Max)	45 V
Supply Voltage (Min)	12 V
Input Voltage	48 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
