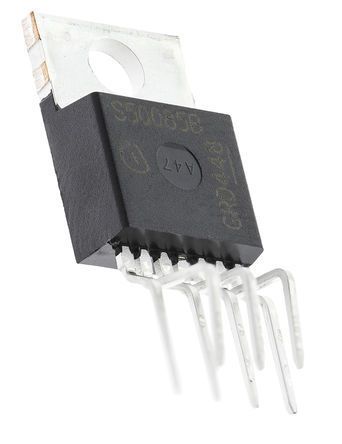

- BTS500551TMAATMA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC15136359
-
Category:Power Distribution
-
Package:TO-220-7
-
Datasheet:Datasheet 3D Model
-
Description:Power Switch Hi Side 1Out 13.6A 0.0044Ω Automotive 8Pin(7+Tab) TO-220 SMD T/R
-
Stock Locations:
-
Availability:1,100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 52.38
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BTS50055-1TMA is a N-channel high-side vertical power FET Switch with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in smart SIPMOS® chip on chip technology. It provides embedded protective functions and open load detection via current sense.
- Overload protection
- Current limitation
- Short-circuit protection
- Over-temperature protection
- Over voltage protection
- Clamp of negative voltage at output
- Fast de-energizing of inductive loads
- Low ohmic inverse current operation
- Loss of VBB protection
- Electrostatic discharge (ESD) protection
- High load current capability
- High inrush current capability
- High energy capability
- ESD sensitive device, take proper precaution while handling the device.
BTS500551TMAATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | TO-220-7 |
| Supply Voltage (DC) | 5.00V (min) |
| Number of Outputs | 1 Output |
| Output Current | 70 A |
| Supply Current | 0.8 mA |
| Number of Positions | 7 Position |
| Power Dissipation | 170 W |
| Input Voltage (Min) | 5 V |
| Output Current (Max) | 55 A |
| Output Current (Min) | 13.6 A |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 170000 mW |
| Input Voltage | 34 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 9.25 mm |
| Size-Height | 4.4 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
