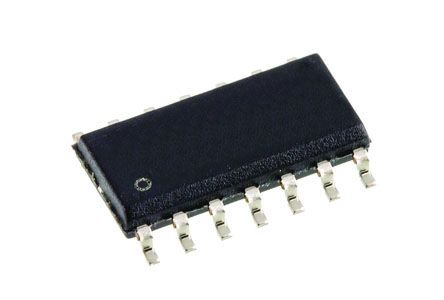

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

If you require switching when dealing with higher end currents and voltages, look no further than the high side BTS51202EKAXUMA1 power switch from Infineon Technologies. This charge controller has 2 outputs. It features 0.12 Ohm switch on resistance. This device has a maximum power dissipation of 1800 mW. This charge controller has an input voltage of -0.3 to 6 V. Its maximum power dissipation is 1800 mW. This device has a supply current of 5 mA and a minimum output current of 2.5(Typ) A. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This charge controller has a minimum operating temperature of -40 °C and a maximum of 150 °C.

Show

BTS51202EKAXUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	PG-DSO-14-40-EP
Number of Outputs	2 Output
Output Current	2.5 A
Supply Current	5 mA
Number of Positions	14 Position
Power Dissipation	1.8 W
Input Voltage (Min)	8 V
Output Current (Max)	2 A
Number of Inputs	2 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1800 mW
Input Voltage	6 V
	Show
Size-Length	8.65 mm
Size-Width	3.9 mm
Size-Height	1.47 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
