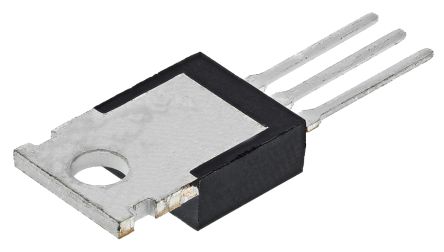

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- NPN SILICON POWER TRANSISTORS 7 AMPERES − 60 WATTS 150 AND 200 VOLTS
- These devices are high voltage, high speed transistors for horizontal deflection output stages of TV’s and CRT’s.
- Features
- • High Voltage: VCEV = 330 or 400 V
- • Fast Switching Speed: tf = 750 ns (max)
- • Low Saturation Voltage: VCE(sat) = 1 V (max) @ 5 A
- • Pb−Free Packages are Available
BU406 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Frequency | 10 MHz |
| Voltage Rating (DC) | 200 V |
| Current Rating | 7.00 A |
| Number of Positions | 3 Position |
| Polarity | NPN |
| Power Dissipation | 60 W |
| Gain Bandwidth Product | 6 MHz |
| Breakdown Voltage (Collector to Emitter) | 200 V |
| Continuous Collector Current | 7A |
| hFE Min | 10 |
| Input Power (Max) | 60 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 60000 mW |
| Show | |
| Size-Length | 10.28 mm |
| Size-Width | 4.82 mm |
| Size-Height | 9.28 mm |
| Material | Silicon |
| Operating Temperature | -65℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| Minimum Packing Quantity | 50 |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
