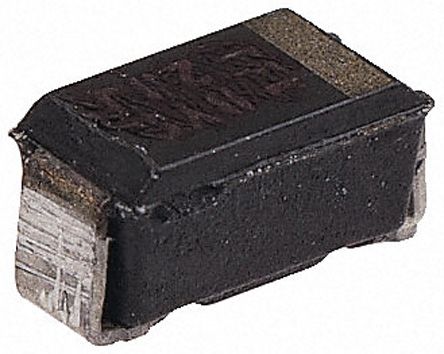

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BZG03C18TR3 is a Zener Diode features high reliability, wave and reflow solderable. It is designed for voltage stabilization.
- Fits onto 5mm SMD footpads
- AEC-Q101 qualified
- UL94V-0 Moulding compound flammability rating
BZG03C18TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AC |
| Breakdown Voltage | 19.1 V |
| Number of Positions | 2 Position |
| Power Dissipation | 3 W |
| Test Current | 25 mA |
| Zener Voltage | 18 V |
| Maximum Forward Voltage (Max) | 1.2V @500mA |
| Input Power (Max) | 1.25 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 3000 mW |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 2.8 mm |
| Size-Height | 2.2 mm |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 1500 |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
