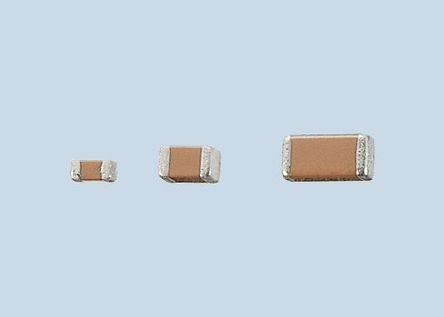

Image is for your reference only,please check specifications for details

C0805C225K3RACTU - KEMET Corporation
Manufacturer:
KEMET Corporation
ManyChip's Part#:
MC41650037
Category:
Ceramic Capacitor
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
SMD Multilayer Ceramic Capacitor, C Series, 2.2F, 10%, X7R, 25V, 0805 [2012 Metric]
Stock Locations:
Availability:
2,138 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Kemet C series commercial grade high voltage multilayer ceramic chip capacitors is Class 2, X7R dielectric material which exhibits no change in capacitance with respect to time and voltage. There will be negligible change in capacitance with reference to ambient temperature. Standard end terminations use a nickel barrier layer and a matte tin finish to provide excellent soldering ability for customers. Typical applications include decoupling, bypass, filtering and transient voltage suppression. MLCCs are monolithic devices that consist of laminated layers of specially formulated, ceramic dielectric materials interspersed with a metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.
Capacitance range includes E24 decade values from 10pF to 47µF
EIA 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes available
DC voltage rating of 500V to 3000V
High temperature range of -55°C to 125°C
Temperature stable dielectric
Capacitance tolerances of ±5%, ±10% and ±20%
Non polarity device, minimize installation concerns
Exceptional performance at high frequencies, low ESR and ESL

Show

C0805C225K3RACTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Pin Pitch	0.75 mm
Voltage Rating (DC)	25.0 V
Insulation Resistance	45 MΩ
Capacitance	2.2 µF
Capacitance Tolerance	±10 %
Dielectric Characteristic	X7R
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	25 V
	Show
Size-Length	2 mm
Size-Width	1.2 mm
Size-Height	1.25 mm
Dielectric Material	Ceramic
Operating Temperature	-55℃ ~ 125℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	R
REACH SVHC Compliance Edition	2015/06/15
