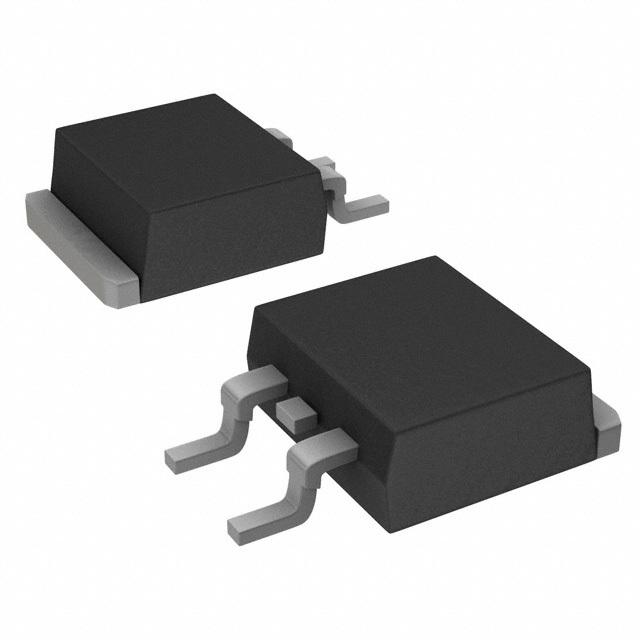

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Diode Array 1 Pair Common Cathode Schottky 100V 5A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Show

MBRB10100CT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Forward Voltage	850mV @5A
Forward Current	10000 mA
Max Forward Surge Current (Ifsm)	120 A
Maximum Forward Voltage (Max)	850 mV
Forward Current (Max)	10 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
