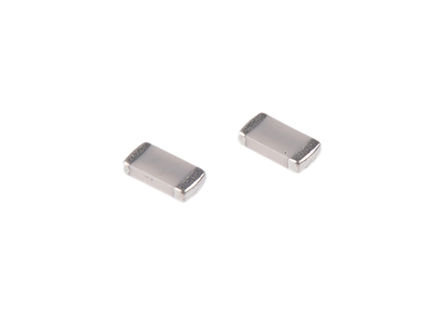

Image is for your reference only,please check specifications for details

C1206C270J5GACTU - KEMET Corporation
Manufacturer:
KEMET Corporation
ManyChip's Part#:
MC11743531
Category:
Ceramic Capacitor
Package:
1206
Datasheet:
Datasheet 3D Model
Description:
KEMET C1206C270J5GACTU SMD Multilayer Ceramic Capacitor, 1206 [3216 Metric], 27pF, 50V, ± 5%, C0G / NPO, C Series
Stock Locations:
Availability:
3,851 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Ceramic chips consist of formulated ceramic dielectric materials which have been fabricated into thin layers, interspersed with metal electrodes alternately exposed on opposite edges of the laminated structure. The entire structure is then fired at high temperature to produce a monolithic block which provides high capacitance values in a small physical volume. After firing, conductive terminations are applied to opposite ends of the chip to make contact with the exposed electrodes. Kemet ceramic chip capacitors are offered in the five most popular temperature characteristics: C0G (NP0) ,X7R, X5R,Z5U & Y5V.

Show

C1206C270J5GACTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3216
Case/Package	1206
Voltage Rating (DC)	50.0 V
Operating Voltage	50 V
Insulation Resistance	100 GΩ
Capacitance	27 pF
Capacitance Tolerance	±5 %
Dielectric Characteristic	C0G/NP0
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	50 V
	Show
Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	0.78 mm
Dielectric Material	Ceramic
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±30 ppm/℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
