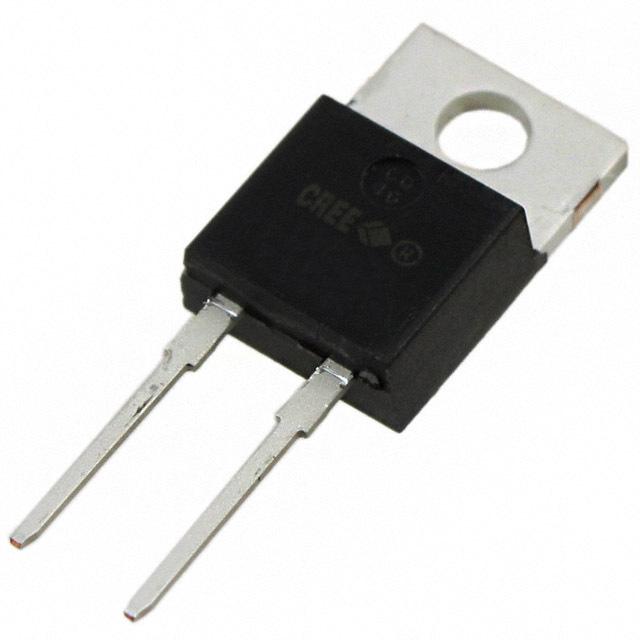

Image is for your reference only,please check specifications for details

Updated at 22/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

C3D04060A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Power Rating	75 W
Load Current	4 A
Forward Voltage	1.8V @4A
Power Dissipation	75 W
Thermal Resistance	2.02℃/W (RθJC)
Reverse recovery time	0 ns
Forward Current	4 A
Max Forward Surge Current (Ifsm)	110 A
Maximum Forward Voltage (Max)	1.8V @4A
Forward Current (Max)	13500 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	52000 mW
	Show
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR
