- AD8602DRZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC457419
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD8602DRZ Operational Amplifier, Dual, 2 Amplifier, 8.2MHz, 5.2V/µs, 2.7V to 5.5V, NSOIC, 8Pins
-
Stock Locations:
-
Availability:5 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.25
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD8601, AD8602, and AD8604 are single, dual, and quad rail-to-rail, input and output, single-supply amplifiers featuring very low offset voltage and wide signal bandwidth. These amplifiers use a new, patented trimming technique that achieves superior performance without laser trimming. All are fully specified to operate on a 3 V to 5 V single supply.
- The combination of low offsets, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications. Filters, integrators, diode amplifiers, shunt current sensors, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. For the most cost-sensitive applications, the D grades offer this ac performance with lower dc precision at a lower price point.
- Applications for these amplifiers include audio amplification for portable devices, portable phone headsets, bar code scanners, portable instruments, cellular PA controls, and multipole filters.
- The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in single-supply systems.

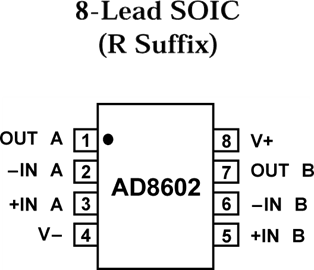

- The AD8601, AD8602, and AD8604 are specified over the extended industrial (−40°C to +125°C) temperature range. The AD8601, single, is available in a tiny, 5-lead SOT-23 package. The AD8602, dual, is available in 8-lead MSOP and 8-lead, narrow SOIC surface-mount packages. The AD8604, quad, is available in 14-lead TSSOP, 14-lead SOIC, and 16-lead QSOP packages.
- ### Features and Benefits
- Low Offset Voltage: 500 µV Max
- Single-Supply Operation: 2.7 V to 5.5 V
- Low Supply Current: 750 µA/Amplifier
- Wide Bandwidth: 8 MHz
- Slew Rate: 5 V/µs
- Low Distortion
- No Phase Reversal
- Low Input Currents
- Unity Gain Stable
AD8602DRZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Output Current | 50mA @5V |
| Supply Current | 750 µA |
| Number of Circuits | 2 Circuit |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 56 dB |
| Bandwidth | 8.2 MHz |
| Slew Rate | 5.20 V/μs |
| Gain Bandwidth Product | 8.4 MHz |
| Input Impedance | 1.00 TΩ |
| Input Offset Voltage | 1.3 mV |
| Input Bias Current | 0.2 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 8.4 MHz |
| Minimum CMRR Range | 56 dB |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5V ~ 6V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
