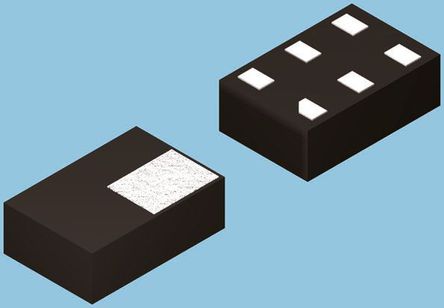

Image is for your reference only,please check specifications for details
- FSA4157L6X - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC69031804
-
Category:Interface IC, Interface Controller
-
Package:UFDFN-6
-
Datasheet:Datasheet 3D Model
-
Description:FAIRCHILD SEMICONDUCTOR FSA4157L6X Analog Switch, Single Channel, SPDT, 1Channels, 1.15Ω, 1.65V to 5.5V, MicroPak, 6Pins
-
Stock Locations:
-
Availability:272 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.28
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Low Voltage 1Ω SPDT Analog Switch The FSA4157A features very low quiescent current even when the control voltage is lower than the VCC supply. This feature services the mobile handset applications very well allowing for the direct interface with baseband processor general purpose I/Os.
FSA4157L6X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | UFDFN-6 |
| Number of Outputs | 2 Output |
| Contacts Type | SPDT |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 1 Bit |
| Power Dissipation | 0.18 W |
| Bandwidth | 300 MHz |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 300 MHz |
| Power Dissipation (Max) | 180 mW |
| Supply Voltage | 1.65V ~ 5.5V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
