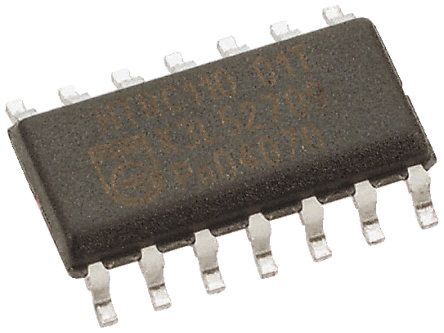

Image is for your reference only,please check specifications for details

FAN7383MX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC52018974
Category:
FET Driver
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
MOSFET DRVR 600V 0.65A 4Out Hi/Lo Side Half Brdg Inv/Non-Inv 14Pin SOP T/R
Stock Locations:
Availability:
1,130 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The FAN7383 is a half-bridge gate-drive IC with shutdown and programmable dead-time control functions for driving MOSFETs and IGBTs that operate up to +600V.
Fairchild’s high voltage process and common-mode noise canceling technique give stable operation of high side drivers under high-dv/dt noise circumstances.
Features
Floating Channel Designed for Bootstrap Operation to +600V.
Typically 350mA/650mA Sourcing/Sinking Current Driving Capability for Both Channels
Extended Allowable Negative VSSwing to -9.8V for Signal Propagation at VDD=VBS=15V
High-Side Output in Phase of IN Signal
Built-in UVLO Functions for Both Channels
Built-in Common-Mode dv/dt Noise Canceling Circuit
Typically Internal 330ns Minimum Dead-Time
Programmable Turn-On Delay Time Control(Dead-Time)

Show

FAN7383MX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	15.0V (min)
Rise/Fall Time	50ns, 30ns
Number of Outputs	4 Output
Number of Positions	14 Position
Power Dissipation	1 W
Rise Time	100 ns
Fall Time	80 ns
Fall Time (Max)	80 ns
Fall Time (Max)	100 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	15V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	15 V
	Show
Size-Length	8.7 mm
Size-Width	3.95 mm
Size-Height	1.55 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
