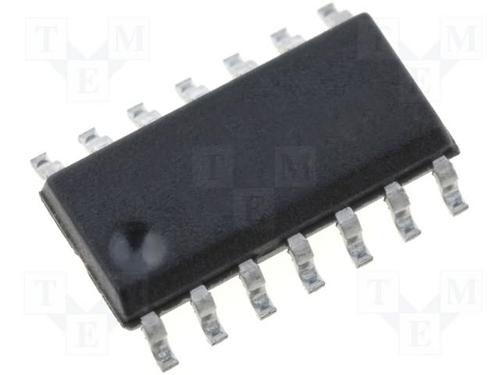

Image is for your reference only,please check specifications for details

74HC4052D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC9750466
Category:
Multiplexer IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
IC 4Channel, DIFFERENTIAL MULTIPLEXER, PDSO16, 3.9MM, 1.47MM THICKNESS, MS-012AC, SOT-109-3, PLASTIC, SO-16, Multiplexer or Switch
Stock Locations:
Availability:
4,414 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC4052D is a dual single-pole quad-throw (2x SP4T) Analog Switch suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications. Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0 and S1) are common to both switches. When E is high, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Low ON resistance - 80R, 70R, 60R (typical) at VCC-VEE = 4.5V, 6.0V, 9.0V respectively
Logic level translation to enable 5V logic to communicate with ±5V analog signals
Typical break before make built-in
Input CMOS level

Show

74HC4052D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	9.00 V
Number of Outputs	8 Output
Contacts Type	SP4T
Number of Circuits	2 Circuit
Number of Positions	16 Position
Polarity	Non-Inverting
Number of Gates	2 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 6V
	Show
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
