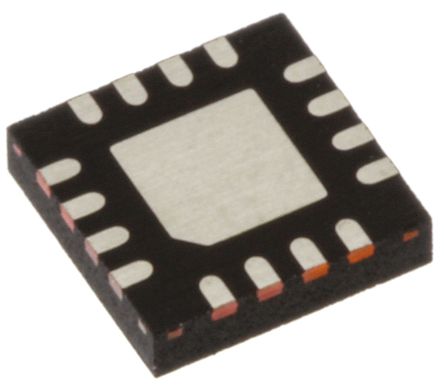

CC1190RGVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC2187830
Category:
Power Supply Accessory
Package:
VQFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CC1190RGVT RF Amplifier IC, 11.6dB Gain, 850MHz to 950MHz, 2V to 3.7V, 0.5W(1/2W), QFN-16
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CC1190RGVT is a low-power high-performance RF Front End for low-voltage wireless applications at 850 to 950MHz. CC1190 is a range extender for the sub-1 GHz low-power RF transceivers, transmitters and System-on-Chip devices from Texas Instruments. Front end integrates a power amplifier (PA), a low-noise amplifier (LNA), switches and RF matching for the design of a high-performance wireless system. Front end increases the link budget by providing a power amplifier for increased output power and an LNA with low noise figure for improved receiver sensitivity.
Integrated PA
Integrated LNA
Integrated switches
Integrated matching network
Integrated inductors
Low receive current consumption
Digital control of LNA and PA gain by HGM pin
50nA in Power down
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

CC1190RGVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	VQFN-16
Frequency	850MHz ~ 950MHz
Supply Voltage (DC)	2.00V (min)
Supply Current	302 mA
Number of Positions	16 Position
Clock Speed	851 GHz
Gain	11.6 dB
Standby Current	50.0 nA
Antenna Connection	Single Ended
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.7 V
Supply Voltage (Min)	2 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	5A991.g
