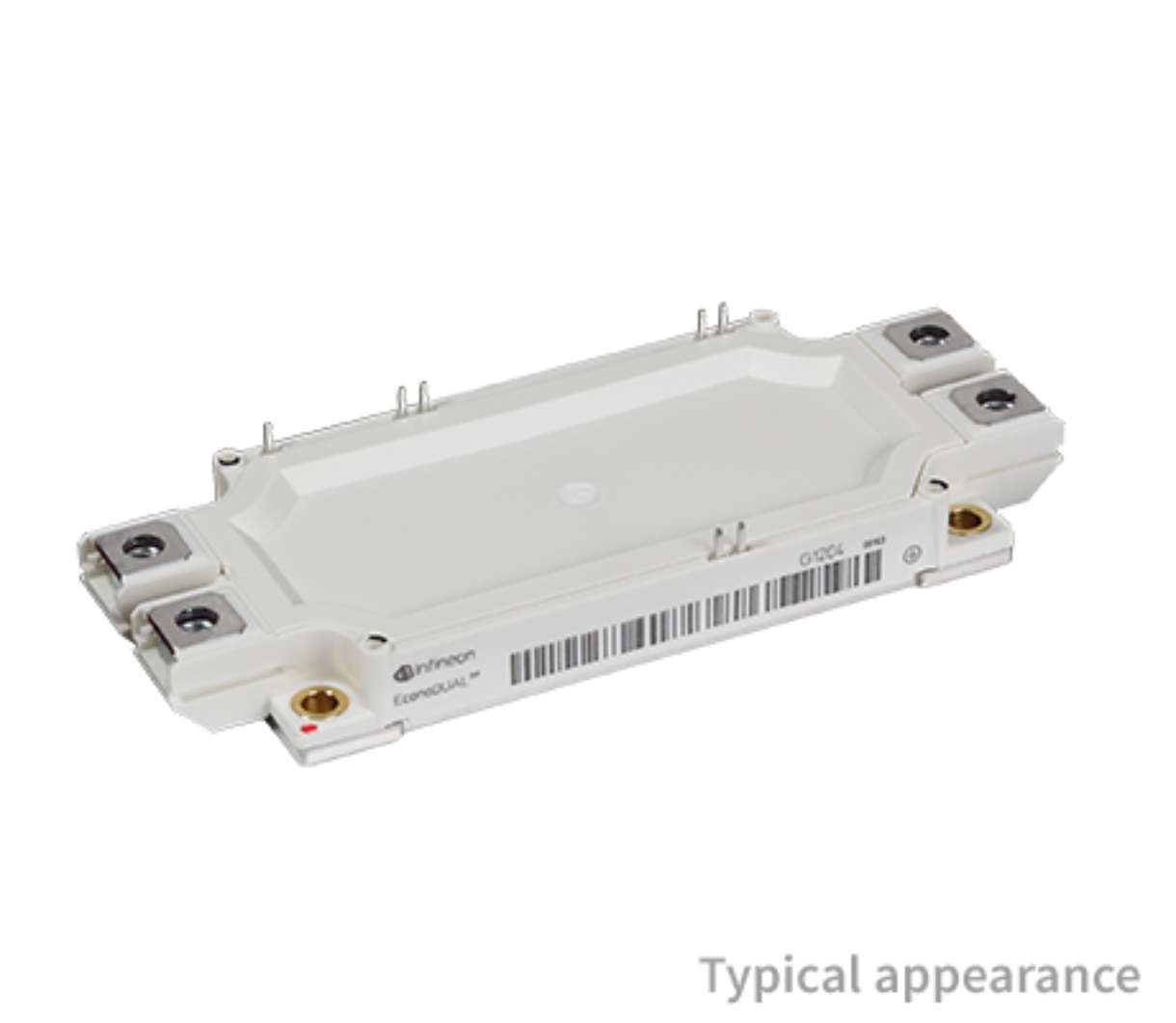

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Low V CEsat
- T vj op = 150°C
- Standard Housing
- Benefits:
- Compact Modules
- Easy and most reliable assembly
- No Plugs and Cables required
- Ideal for Low Inductive System Designs
FF450R12ME4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 11 Pin |
| Case/Package | AG-ECONOD-3 |
| Power Rating | 2250 W |
| Power Dissipation | 2250 W |
| Breakdown Voltage (Collector to Emitter) | 1200 V |
| Input Capacitance (Cies) | 28nF @25V |
| Input Power (Max) | 2250 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2.25 kW |
| Show | |
| Size-Length | 152.1 mm |
| Size-Width | 62 mm |
| Size-Height | 20.8 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status |
