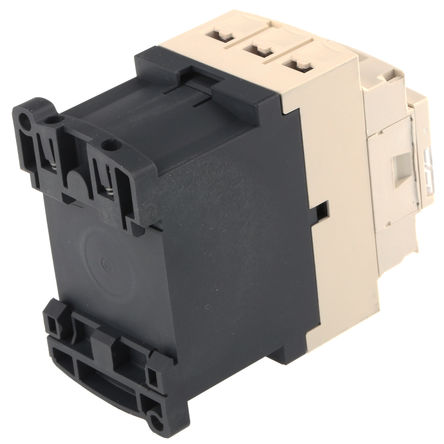

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CAD32 600 Volt relays are approved for use around the world. TeSys D relays can be mounted on standard 35 mm DIN rail but can also be mounted directly to a panel. The fixed contacts in these relays have a NEMA A600 and Q600 ratings, in addition to the standard IEC ratings, making them suitable for use in most any control circuit. Top and side mounted auxiliary contacts can be added to a basic 5-pole relay to make it up to an 11-pole. Special auxiliary contacts are available for switching low power down to 5 volts at 10 mA. Timer and mechanical latch attachments are available.
**Features:**
* Easily Installed Accessories
* Auxiliary Contact Blocks with Serrated Wiping Action
* Front Mount Dust Tight Auxiliary Contact Blocks
* Pneumatic Time Delay Blocks
* Transient Voltage Surge Suppressors
* Interface Modules and Electronic Timers
* Mechanical Latching Blocks

Show

CAD32FD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, DIN Panel
Operating Voltage	600 VAC
Contact Current Rating	10 A
Coil Voltage	110 V
Coil Voltage (DC)	110 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
	Show
Size-Length	99 mm
Size-Width	45 mm
Operating Temperature	-5℃ ~ 60℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
