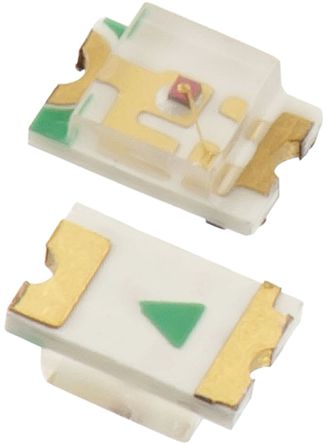

Image is for your reference only,please check specifications for details

150080RS75000 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC2986615
Category:
Based LED
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
LED, 0805, RED, 150MCD, 625NM; Bulb Size: -; LED Colour: Red; Luminous Intensity: 1
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 150080RS75000 is a blue SMD chip LED Lamp with mono-colour water clear lens. This LED is suitable for backlight and miniaturized colour effects.
Low Energy Consumption
High Reliability
Low Current Requirement
Fast Switching
No UV/IR Radiation
Smallest SMD Package with Exceptional Brightness
Top View
Wide Viewing Angle
PBC High-usage
Better Solderability
Heat Dissipation
Washing varnish agent that is used during the production to clean the customer application might damage or change the characteristics of the LED body, pins or termination.

Show

150080RS75000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	0805
Number of Positions	2 Position
Forward Voltage	2 V
Wavelength	625 nm
Luminous Intensity	150 mcd
Viewing Angle	140°
Peak Wavelength	630 nm
Test Current	20 mA
Forward Current	30 mA
	Show
Size-Width	1.25 mm
Size-Height	0.80 mm
Color	Red
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
