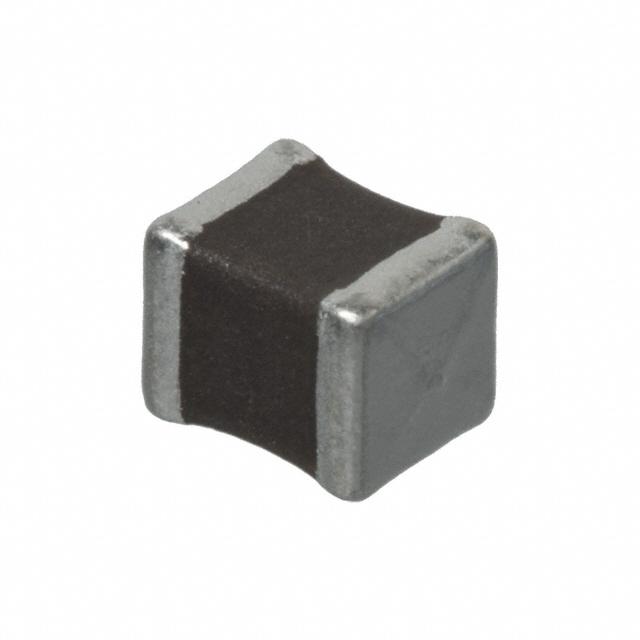

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Inductor Power Chip Wirewound 4.7uH 20% 7.96MHz Ferrite 920mA 260mOhm DCR 1007 T/R
CBC2518T4R7M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 1007 |
| Current Rating | 920 mA |
| Capacitance Tolerance | ±20 % |
| Halogen Free Status | Halogen Free |
| Inductance | 4.7 µH |
| Self Resonant Frequency | 41 MHz |
| Part Family | CB |
| Shielding | No |
| Inductance Tolerance | ±20 % |
| Test Frequency | 7.96 MHz |
| DC Resistance (DCR) | ≤260 mΩ |
| Current Rating (DC) | 920 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Accuracy | ±20 % |
| Resistance (DC Max) | 0.2 Ω |
| Show | |
| Size-Length | 2.5 mm |
| Size-Width | 1.8 mm |
| Size-Height | 1.8 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504500000 |
| ECCN Code | EAR99 |
