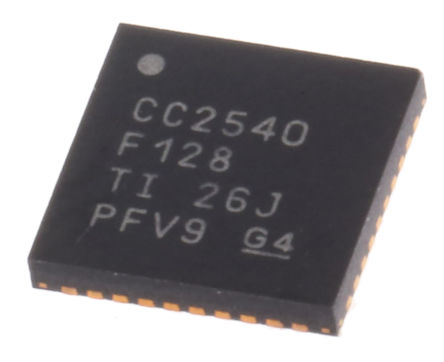

- CC2540F128RHAT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11327445
-
Category:RF Module
-
Package:VQFN-40
-
Datasheet:Datasheet 3D Model
-
Description:RF Transceiver IC, 2.402GHz to 2.48GHz, GFSK, 1Mbps, 24 dBm out, 2V to 3.6V, VQFN-40
-
Stock Locations:
-
Availability:272 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.4
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CC2540F128RHAT is a SimpleLink Bluetooth Smart Wireless RF Transceiver with MCU and USB. The CC2540 is a low-power true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The CC2540 combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8kB RAM and many other powerful supporting features and peripherals. The CC2540 is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption. Combined with the Bluetooth low energy protocol stack from Texas Instruments, the CC2540F128 forms the market"s most flexible and single-mode Bluetooth low energy solution.
- Bluetooth low energy technology compatible
- Excellent link budget (up to 97dB), enabling long-range applications without external front end
- Accurate digital received signal-strength indicator (RSSI)
- Few external components
- Reference design provided
- Active mode RX down to 19.6mA
- 24mA Active mode TX (-6dBm)
- 235µA Power mode 1 (3µs wake-up)
- 0.9µA Power mode 2 (sleep timer on)
- 0.4µA Power mode 3 (external interrupts)
- Microcontroller - high-performance and low-power 8051 microcontroller core
- Microcontroller - in-system-programmable flash, 128 or 256kB
- Microcontroller - 8kB SRAM
- 12-bit ADC with eight channels and configurable resolution
- Integrated high-performance op-amp and ultralow-power comparator
- General-purpose timers (one 16-bit, two 8-bit)
- 32kHz Sleep timer with capture
- Two powerful USARTs with support for several serial protocols
- Full-speed USB interface
- IR generation circuitry
CC2540F128RHAT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 40 Pin |
| Case/Package | VQFN-40 |
| Frequency | 2.4 GHz |
| Supply Voltage (DC) | 2.00V (min) |
| Supply Current | 0.0004 mA |
| Number of Positions | 40 Position |
| Clock Speed | 32.0 MHz |
| RAM Memory Size | 8192 B |
| Data Rate | 1.00 Mbps |
| FLASH Memory Size | 131334144 B |
| Output Power | 4 dBm |
| Number of UARTs | 1 UART |
| Standby Current | 400 nA |
| Antenna Connection | Differential |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 6 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HK STC License | NLR |
