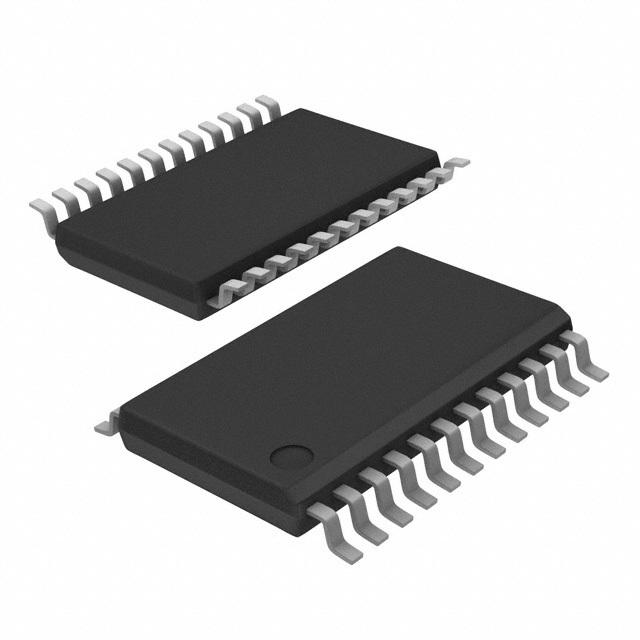

Image is for your reference only,please check specifications for details
- CDCE949QPWRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8161503
-
Category:Clock Generator IC
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Clock Generator 8MHz to 160MHz Input 230MHz Output Automotive 24Pin TSSOP T/R
-
Stock Locations:
-
Availability:270 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.99
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CDCE949 is a modular PLL-based low-cost high-performance programmable clock synthesizer, multiplier, and divider. It generates up to 9 output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230 MHz, using up to four independent configurable PLLs.
- The CDCE949 has separate output supply pins, VDDOUT, of 2.5 V to 3.3 V.
- The input accepts an external crystal or LVCMOS clock signal. If an external crystal is used, an on-chip load capacitor is adequate for most applications. The value of the load capacitor is programmable from 0 to 20 pF. Additionally, an on-chip VCXO is selectable, allowing synchronization of the output frequency to an external control signal, that is, a PWM signal.
- The deep M/N divider ratio allows the generation of zero-ppm audio/video, networking (WLAN, BlueTooth™, Ethernet, GPS) or Interface (USB, IEEE1394, Memory Stick) clocks from a reference input frequency, such as 27 MHz.
- All PLLs support SSC (Spread-Spectrum Clocking). SSC can be Center-Spread or Down-Spread clocking. This is a common technique to reduce electro-magnetic interference (EMI).
- Based on the PLL frequency and the divider settings, the internal loop-filter components are automatically adjusted to achieve high stability, and to optimize the jitter-transfer characteristics of each PLL.
- The device supports non-volatile EEPROM programming for easy customization of the device to the application. It is preset to a factory-default configuration (see the _Default device Configuration_ section). It can be reprogrammed to a different application configuration before PCB assembly, or reprogrammed by in-system programming. All device settings are programmable through the SDA/SCL bus, a 2-wire serial interface.
- Three programmable control inputs, S0, S1 and S2, can be used to control various aspects of operation including frequency selection, changing the SSC parameters to lower EMI, PLL bypass, power down, and choosing between low level or 3-state for the output-disable function.
- The CDCE949 operates in a 1.8 V environment. It operates within a temprateure range of –40°C to 125°C.
CDCE949QPWRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Supply Voltage (DC) | 1.80 V |
| Number of Outputs | 9 Output |
| Supply Current | 38 mA |
| Number of Circuits | 1 Circuit |
| Duty Cycle | 60% (Max) |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.7V ~ 1.9V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
