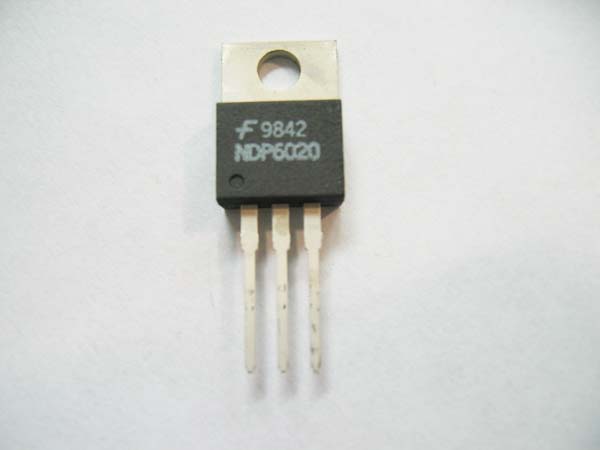

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

NDP6020 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	23 mΩ
Polarity	N-CH
Power Dissipation	60 W
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20 V
Continuous Drain Current (Ids)	35A
Rise Time	148 ns
Fall Time	233 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	10.67 mm
Size-Width	4.7 mm
Size-Height	16.3 mm
Product Lifecycle Status	Unknown
Packaging	Rail
RoHS	RoHS Compliant
