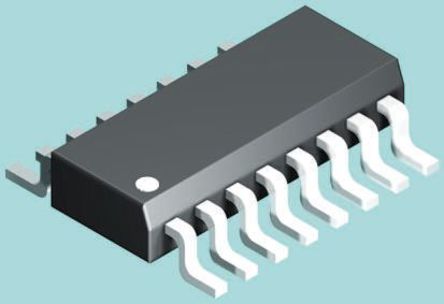

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SG2525AP is a Pulse Width Modulator (PWM) designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. The on-chip 5.1V reference is trimmed to ±1% and the input common-mode range of the error amplifier includes the reference voltage eliminating external resistors. A sync input to the oscillator allows multiple units to be slaved or a single unit to be synchronized to an external system clock. A single resistor between the CT and the discharge terminals provide a wide range of dead time adjustment. These devices also feature built-in soft-start circuitry with only an external timing capacitor required. A shutdown terminal controls both the soft-start circuitry and the output stages, providing instantaneous turn off through the PWM latch with pulsed shutdown, as well as soft-start recycle with longer shutdown commands.
Separate oscillator sync terminal
Adjustable deadtime control
Internal soft-start
Pulse-by-pulse shutdown
Input undervoltage lockout with hysteresis
Latching PWM to prevent multiple pulses
Dual source/sink output drivers

Show

SG2525AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	500 kHz
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Output Voltage	0.2.5.6 V
Output Current	500 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Power Dissipation	1000 mW
Rise Time	100 ns
Switching Frequency	100Hz ~ 400kHz
Thermal Resistance	80 ℃/W
Duty Cycle	49 %
Maximum Duty Cycle	49 %
Fall Time	50 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	8V ~ 35V
Supply Voltage (Max)	35 V
Supply Voltage (Min)	8 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
