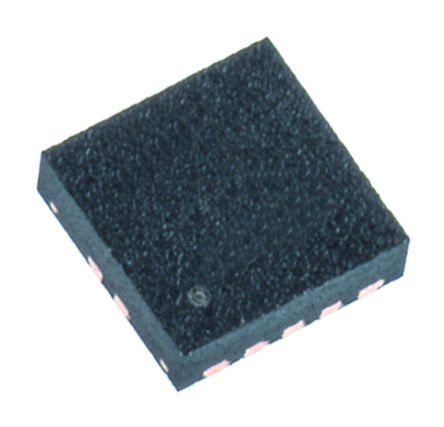

Image is for your reference only,please check specifications for details
- TPS61027DRCR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11219763
-
Category:DC to DC Converter
-
Package:VSON-10
-
Datasheet:Datasheet 3D Model
-
Description:Step-Up Regulator 5V Output, 1.5A Switch, 96% Efficient Boost Converter w/ LDO Down-Mode, QFN-10 Conv DC-DC 0.9V to 6.5V Step Up Single-Out 5V 1.2A 10Pin VSON EP T/R
-
Stock Locations:
-
Availability:6 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.29
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS61027DRCR is a 96% Efficient Boost Converter with LDO down-mode. It provides a power supply solution for products powered by a one-cell, two-cell or three-cell alkaline, NiCd or NiMH or one-cell Li-ion or Li-polymer battery. Output currents can go as high as 200mA while using a single-cell alkaline battery and discharge it down to 0.9V. The device can also be used for generating 5V at 500mA from a 3.3V rail or a Li-ion battery. The boost converter is based on a fixed-frequency, pulse width modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents the converter enters the power save mode to maintain a high efficiency over a wide-load current range. The power save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800, 1500 or 1800mA depending on the version of the device.
- 96% Efficient synchronous boost converter
- Output voltage remains regulated when input voltage exceeds nominal output voltage
- 25µA Typical device quiescent current
- Fixed and adjustable output voltage options up to 5.5V
- Power save mode for improved efficiency at low output power
- Low battery comparator
- Low EMI-converter (integrated anti-ringing switch)
- Load disconnect during shutdown
- Over-temperature protection
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPS61027DRCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSON-10 |
| Frequency | 720 kHz |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 200 mA |
| Number of Positions | 10 Position |
| Quiescent Current | 25.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 600 kHz |
| Topology | Boost |
| Input Voltage (Max) | 6.5 V |
| Input Voltage (Min) | 0.9 V |
| Output Voltage (Max) | 5 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 1.2 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 0.9 V |
| Input Voltage | 0.9V ~ 6.5V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
