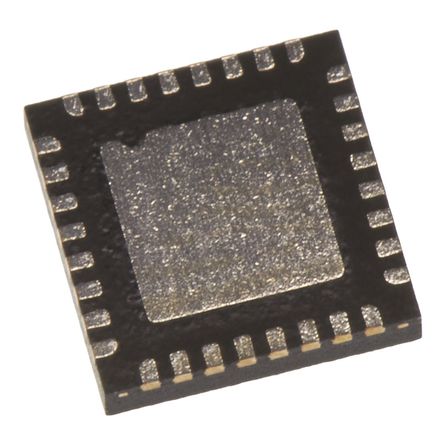

Image is for your reference only,please check specifications for details

KSZ8041NLI TR - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC126479503
Category:
Interface IC, Interface Controller
Package:
QFN-32
Datasheet:
Datasheet 3D Model
Description:
MICREL SEMICONDUCTOR KSZ8041NLI TR Ethernet Controller, 100Mbps, IEEE 802.3, IEEE 802.3u, 3.135V, 3.465V, QFN, 32Pins
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KSZ8041NLI TR is a single supply 10Base-T/100Base-TX Physical Layer Transceiver provides MII/RMII interfaces to transmit and receive data. Unique mixed signal design extends signalling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. The KSZ8041NL represents a new level of features and performance and is an ideal choice of physical layer transceiver for 10Base-T/100Base-TX applications.
Fully compliant to IEEE 802.3u standard
Low power CMOS design, power consumption of <180mW
Robust operation over standard cables
Power down and power saving modes
Programmable LED outputs for link, activity and speed
ESD rating (6kV)

Show

KSZ8041NLI TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	QFN-32
Supply Voltage (DC)	3.13V (min)
Supply Current	53 mA
Number of Positions	32 Position
Data Rate	100 Mbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.135V ~ 3.465V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	3.135 V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
