Description

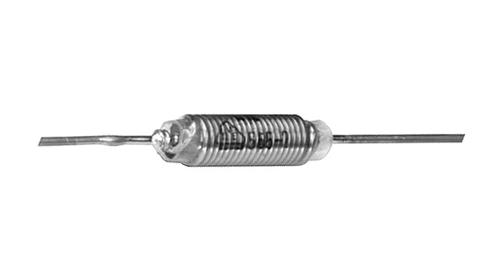

The B82111EC21 is an axial leaded High Frequency Inductor with ferrite cylinder core. This VHF choke is constructed as single-layer, enamel copper wire windings and polyester insulating sleeve. This inductor"s terminals are made of central axial leads, copper base and hot-dip tinned with pure tin terminations. Supports ±20% of inductance tolerance and is suitable for wave soldering.
High resonant frequency
Wide inductance range
Complies with EN60938 standard

Show

B82111EC21 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial
Voltage Rating (AC)	500 V
Current Rating	4 A
Capacitance Tolerance	±20 %
Inductance	12 µH
Self Resonant Frequency	140 MHz
Resistance	40.0 mΩ
Resonant Frequency	140 MHz
Inductance Tolerance	±20 %
Test Frequency	100 KHz
DC Resistance (DCR)	40 mΩ
Current Rating (DC)	4 A
Resistance (DC Max)	0.04 Ω
	Show
Size-Height	26.0 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
