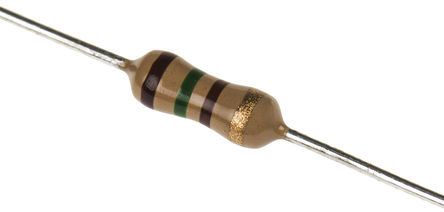

Image is for your reference only,please check specifications for details

CFR25J150R - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC53559111
Category:
Through-Hole Resistor
Datasheet:
Datasheet 3D Model
Description:
Through Hole Carbon Film Resistor, CFR Series, 150Ω, 330mW, - 5%, 250V, Axial Leaded
Stock Locations:
Availability:
1,711 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The resistive element comprises a thin film of carbon, deposited onto a high thermal conductivity ceramic core. Metal end caps are force fitted to the element prior to spiraling value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin followed by three coats of epoxy resin. All resistors are tested for value and tolerance.
**Features:**
* Low Cost, Combined with High Reliability, Make these Components Suitable for Use in Most Types of Circuits, Including Audio, Communications, Measurement and Computer Applications
* Premium Quality Carbon Film Resistors whose Ceramic Core has a High Alumina Content Offering Power to Size Ratios Not Normally Associated with Carbon Film Product
* Available in 5 Power Ratings from 1 Ω to 10 MΩ. The Smallest Case Size (CFR16) has a Full 0.25 W Power Ratings

Show

CFR25J150R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	250 V
Capacitance Tolerance	±5 %
Power Rating	330 mW
Resistance	150 Ω
Resistance Tolerance	±5 %
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	250 V
	Show
Size-Length	6.8 mm
Size-Diameter	Φ2.50mm
Lead Length	28 mm
Operating Temperature	-55℃ ~ 155℃
Temperature Coefficient	-450ppm/℃ ~ 0ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
