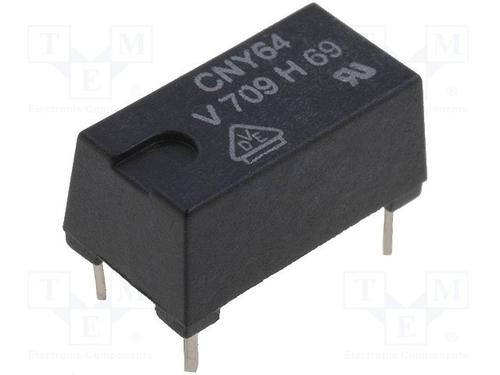

Image is for your reference only,please check specifications for details
- CNY64 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC10036147
-
Category:Optocoupler, Optoisolator
-
Package:DIP-4
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler, Transistor Output, 1Channel, DIP, 4Pins, 75mA, 8.2kV, 50%
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CNY64 is a 1-channel 4-pin Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. The single components are mounted opposite one another, providing a distance between input and output for highest safety requirements of >3mm. It is suitable for line receiver and microprocessor system interface.
CNY64 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | DIP-4 |
| Voltage Rating (DC) | 5.00 V |
| Power Rating | 0.25 W |
| Output Voltage | 32.0 V |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.6 V |
| Input Current | 75 mA |
| Power Dissipation | 0.25 W |
| Rise Time | 0.0024 ms |
| Isolation Voltage | 8.2 kV |
| Forward Current | 75 mA |
| Reverse Breakdown Voltage | 5 V |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 75 mA |
| Fall Time | 2.7 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Length | 12.8 mm |
| Size-Width | 7.2 mm |
| Size-Height | 6 mm |
| Operating Temperature | -55℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
