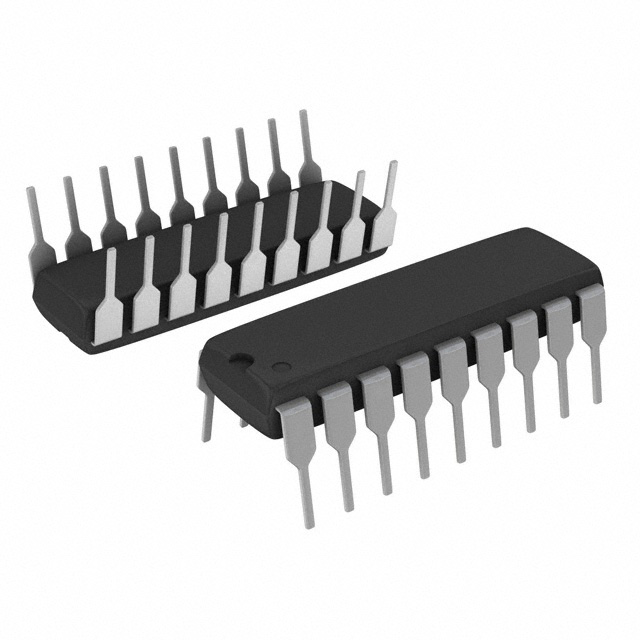

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Intersil 82C84A is a high performance CMOS Clock Generator-driver which is designed to service the requirements of both CMOS and NMOS microprocessors such as the 80C86, 80C88, 8086 and the 8088. The chip contains a crystal controlled oscillator, a divide-by-three counter and complete “Ready” synchronization and reset logic. Static CMOS circuit design permits operation with an external frequency source from DC to 25MHz. Crystal controlled operation to 25MHz is guaranteed with the use of a parallel, fundamental mode crystal and two small load capacitors.
Features
• Generates the System Clock For CMOS or NMOS Microprocessors
• Up to 25MHz Operation
• Uses a Parallel Mode Crystal Circuit or External Frequency Source
• Provides Ready Synchronization
• Generates System Reset Output From Schmitt Trigger Input
• TTL Compatible Inputs/Outputs
• Very Low Power Consumption
• Single 5V Power Supply
• Operating Temperature Ranges
\- C82C84A . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
\- I82C84A . . . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C
\- M82C84A . . . . . . . . . . . . . . . . . . . . . . .-55°C to +125°C
• Pb-Free Plus Anneal Available (RoHS Compliant)

Show

CP82C84A Specifications
