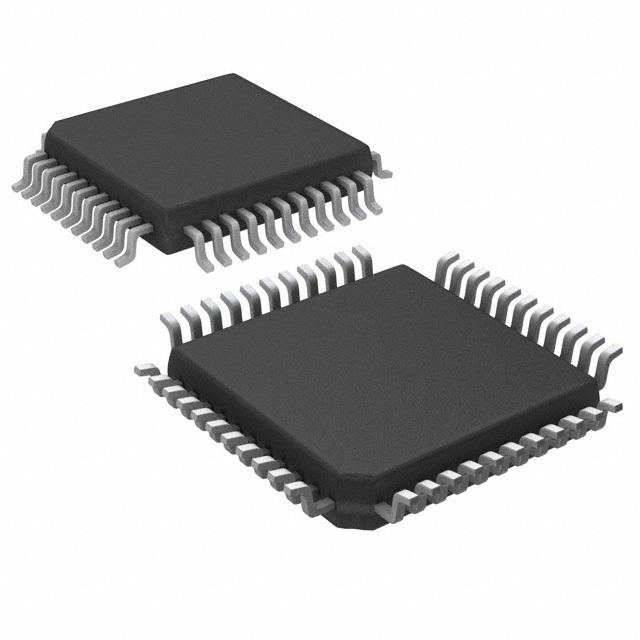

CQ82C55AZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC69636140
Category:
Interface IC, Interface Controller
Package:
MQFP-44
Datasheet:
Datasheet 3D Model
Description:
IC, I/O EXPANDER; Chip Configuration:8Bit; Bus Frequency:8MHz; IC Interface Type:CMOS; Supply Voltage Min:4.5V; Supply Voltage Max:5.5V; Interface Case Style:MQFP; No. of Pins:44; No. of I/Os:24; Packaging:Each; MSL:- ;RoHS Compliant: Yes
Stock Locations:
Availability:
532 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.12

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

CMOS Programmable Peripheral Interface
The Intersil 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the 82C55A make it compatible with the 80C86, 80C88 and other microprocessors.
Features
• Pb-Free Plus Anneal Available (RoHS Compliant) (See Ordering Info)
• Pin Compatible with NMOS 8255A
• 24 Programmable I/O Pins
• Fully TTL Compatible
• High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88
• Direct Bit Set/Reset Capability
• Enhanced Control Word Read Capability
• L7 Process
• 2.5mA Drive Capability on All I/O Ports
• Low Standby Power (ICCSB) . . . . . . . . . . . . . . . . . . .10μA
