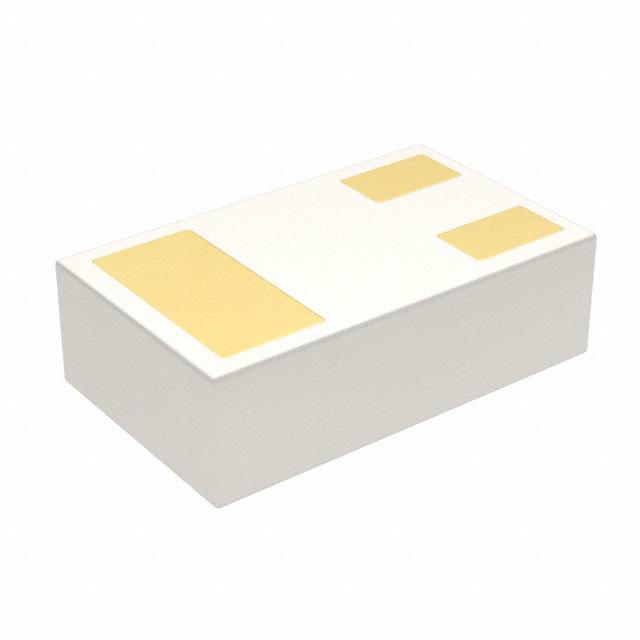

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Low on-Resistance * Ultra-Low Qg and Qgd * Low Threshold Voltage * Ultra-Small Footprint (0402 Case Size) * 1.0 mm × 0.6 mm * Ultra-Low Profile * 0.2 mm Height
CSD17484F4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | PICOSTAR-3 |
| Power Dissipation | 0.5 W |
| Drain to Source Voltage (Vds) | 30 V |
| Rise Time | 1 ns |
| Input Capacitance (Ciss) | 150pF @15V(Vds) |
| Fall Time | 4 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
