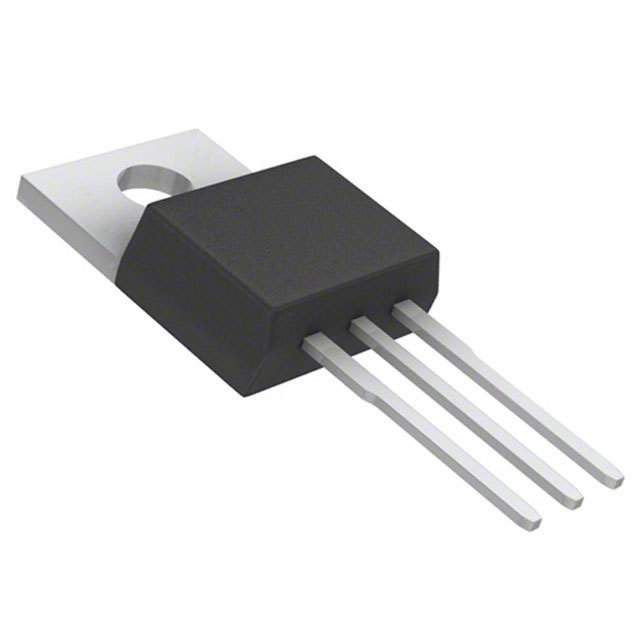

Image is for your reference only,please check specifications for details
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CSD18504KCS is a NexFET™ N-channel Power MOSFET designed to minimize losses in power conversion applications. It is suitable for use in DC-to-DC conversion, secondary side synchronous rectifier and battery motor control applications.
- Ultra-low Qg and Qgd
- Low thermal resistance
- Avalanche rated
- Halogen-free
- Plastic package
- Logic level
- -55 to 175°C Operating junction temperature range
CSD18504KCS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.0055 Ω |
| Polarity | N-Channel |
| Power Dissipation | 93 W |
| Threshold Voltage | 1.9 V |
| Drain to Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Ids) | 100A |
| Rise Time | 5.2 ns |
| Input Capacitance (Ciss) | 1800pF @20V(Vds) |
| Input Power (Max) | 93 W |
| Fall Time | 4.2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 115W (Tc) |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
