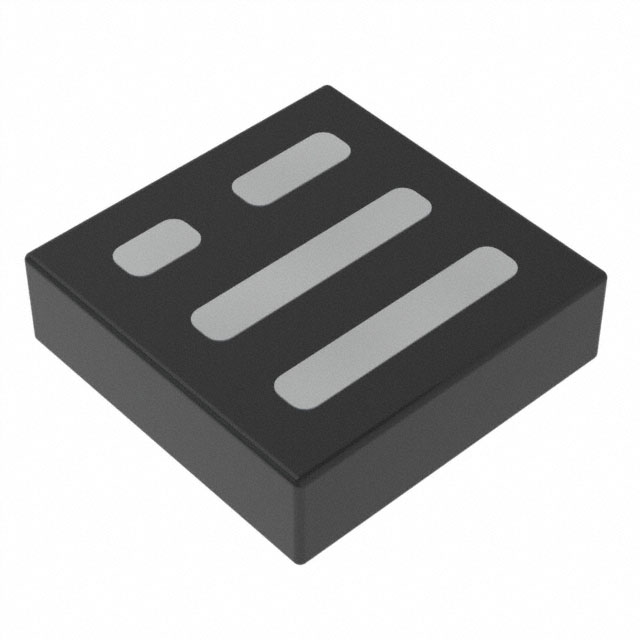

Image is for your reference only,please check specifications for details
- CSD22205L - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC19510696
-
Package:Picostar-4
-
Description:Trans MOSFET P-CH 8V 7.4A 4Pin PICOSTAR T/R
-
Stock Locations:
-
Availability:1,100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.39
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This –8-V, 8.2-mΩ, 1.2-mm × 1.2-mm Land Grid Array (LGA) NexFET™ device has been designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra-low profile. The Land Grid Array (LGA) package is a silicon chip scale package with metal pads instead of solder balls.
CSD22205L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 4 Pin |
| Case/Package | Picostar-4 |
| Power Dissipation | 800 mW |
| Rise Time | 14 ns |
| Input Capacitance (Ciss) | 1070pF @4V(Vds) |
| Fall Time | 32 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 600 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
