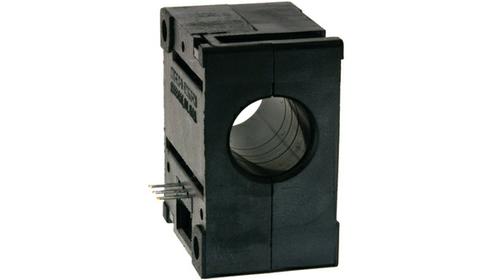

Image is for your reference only,please check specifications for details

CSDA1BA - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC23283037
Category:
Current Sensor
Package:
Module, Single Pass Through
Datasheet:
Datasheet 3D Model
Description:
HONEYWELL CSDA1BA Current Sensor, CS Series, Solid State, 250mA to 1A, Digital Output, 6VDC to 16VDC
Stock Locations:
Availability:
289 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CSDA1BA is a Digital Current Sensor, provides a logic level output that changes from approximately Vcc to 0.4V when the sensed current exceeds the operate point. Each digital sensor will operate on ac or dc current, but the output will turn off at every zero crossing when sensing AC current.
Digital output
AC or DC current sensing
Through-hole design
Output voltage isolation from input
Minimum energy dissipation
Maximum current limited only by conductor size
Accurate, low cost sensing
-25 to 85°C operating temperature range
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.

Show

CSDA1BA Specifications
