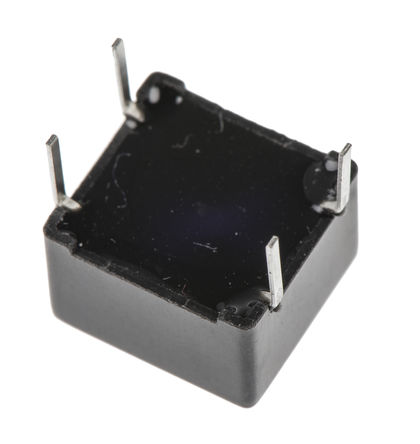

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DA102C is a fully encapsulated Digital Audio Transformer, 1:1 turn ratio with toroidal construction and surface through hole mount. This transformer is capable of operating over the audio data rate frequency range, providing isolation from 50-60Hz noise, industry-standard pinout, designed to improve the balance of transmitter and receiver circuitry in hi-fi equipment, video games and other applications requiring high-performance digital audio transmission. Compatible with leading chip sets. Compliant with AES/EBU standards for the digital audio interface, offering optimised shunt capacitance between primary and secondary windings.
2 to 3.9mH Primary inductance

Show

DA102C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-6
Pin Pitch	10.2 mm
Flammability Rating	UL 94 V-0
Inductance	3.9 mH
Isolation Voltage	2 kV
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Length	9.52 mm
Size-Width	8.89 mm
Size-Height	6.35 mm
Weight	0.912 g
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
